SPECIFICATIONS

Hign-concerned Chemical: None

Voltage: 24V

Battery Life: 1 To 4 Hours

Item Size: 87 43 14mm

Special Feature: Remote Control

GPS type: GPS Tracker

Model Name: GT003

Screen Size: No screen

Gps Module: Yes

Certification: CE

Certification: FCC

Certification: RoHS

Platform: yes

app: yes

waterproof: yes

engine cut off: yes

battery: yes

Two steps to be our shop followers, enjoying 2% more discount! Refresh order pages, price will be changed automatically.

GT003 is a Mini intelligent GPS Vehicle positioning terminal. It combines the GSM wireless communication technology and GPS positioning system technology,terminals using industrial-grade highly integrated design,intelligent power-saving and passive drift suppression,installation is simple,connect the power supply to start work immediately,wide inpute voltage range,wide applicable to all types of cars,motor cycles,electric cars,ships,etc., can provide all-weather,real-time vehicle positioning function,with global positioning service platform,you can achieve remote vehicle management.

BATTEY INSIDE FOR WIRE-CUT ALARM

The best GSM chip and GPS chip:

GSM chip:MT6261

GPS chip:Ublox 8130

 Device feature

Working Based on existing GSM/GPRS network and GPS satellites, this product can locate and monitor any remote targets by SMS or internet.

Overview of the characteristics:

1.GPS position.

2.GSM 850/900/1800/1900MHZ.

3.G-sensor inside,saving GPRS flow.

4.Auto set APN.

5.Voltage 9V-40V.

6.ACC detection.

7.Oil cut function.

1. Specification

1).GSM:850/900/1800/1900MHZ

2).GPRS: Class12, TCP/IP

3).Working Voltage:9-40V DC

4).Working current:22mA (12VDC)

5).Working current:12mA (24VDC)

6).GPS locating time:

Cold start:38s(Open sky)

Warm start:32s

Hot start:2s(Open sky)

7).GPS Precision:10m(2D RM)

8).Working temperature:-20 Celsius~+70 Celsius

9).Working humidity:20%~80%RH

10).Measurement:87(L)×43(W)×14(H)mm

2.Accessories

Power wire

 Relay

3.Platform:

The platform free use for 1 year.

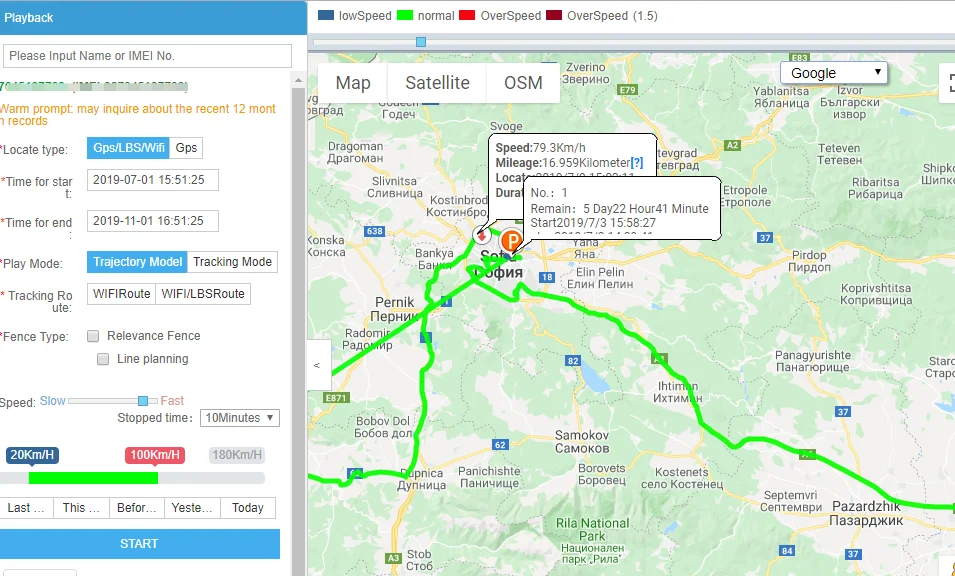

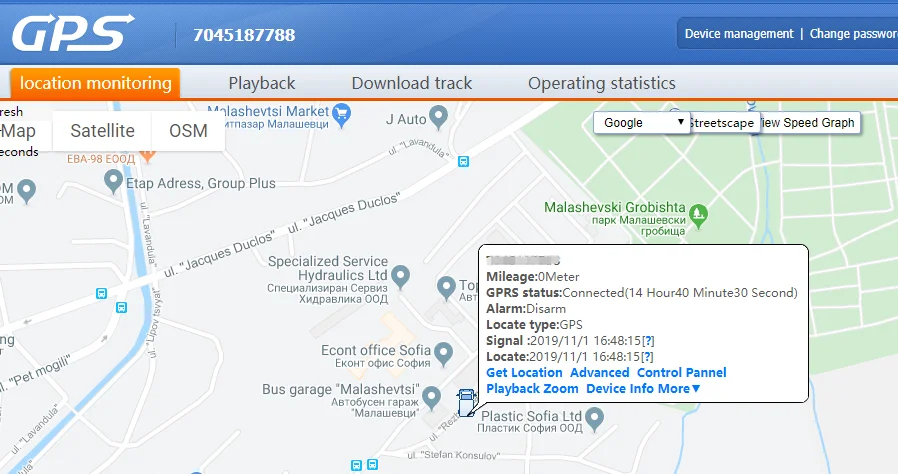

Real time tracking platform:

portable device  APP:

4.Device wiring

5.Packing:

1.gps tracker--GT003

2.english manual

3.wire

4.relay

Installation:

During installation, there should be no power to the

device.

1. Installing SIM card: pls insert a supporting 2G GSM

SIM card. The SIM card used should be enabled for GPRS.

1) Testing SIM card: to test SIM card, please install it into a

normal GSM mobile and ensure it can send and receive

SMS, and enables for GPRS.

2.Please connect the wire with car battery or power with DC12V output,and the max current of the power should>2A,for when searching signal,need more current.

3.Please put the tracker out of the room,and face to sky,should not be under metal cover,for GPS signal only can be received out of the room.

Your device will be auto online when you connect it rightly.

Login as ID(IMEI last 11bits)

pass:123456

Real time tracking platform:

www.dyegoo.net

APP:

1. www.dyegoo.net/app ((Please click UK flag to change to english in advance when you are trying to download.)

2. Search DYEGOO in apple store.

For sms command feeddback, pls set center number firstly, then it will respond your sms command.

Admin account set:

Pls send the admin name and all the device IMEI numbers to me.

We will create the admin account for you.

Pls send sms to sim in the device to set your tel as the admin account:

710#your country code your mobile number#

example  Chinese set below:710#008613923792963#

When the admin account is created, you can create sub-account by yourself in the tracking platform and you can operate adding device in the sub-account.

When you create admin account successfully,

You can send sms 886# tocheck gsm and gps signal.

902# to check the device status.

Reminder and FAQ:

1. SIM card will consume about 30M per month.

2. For some Android mobile phone,it is needed to install

Google ServicesFramework.apk, if there no this APK,it can not

display google maps in APP.

Please search GoogleServicesFramework.apk by google and

install it first,then install DYEGOO Google maps app.

3.In production, IP,port have been writed in, normally the tracker

will be auto online, if the tracker offline, Please set APN by

sms command.

Please get APN from sim card inserted mobile operator.

APN set: (According to user manual,send SMS command)

Using your mobile to set APN firstly to activate the device

(you can get APN from the SIM card local network operator,call them to ask it.)

If you lost IP,port,please send below sms command to set them

back： Server,666666,1,gps.dyegoo.net,6100,0#

Or

Server,666666,0,47.90.39.27,6100,0#

4. If GPS can not receive the signals normally, please

drive to the open areas for positioning. Generally, it needs 1-2

minutes to receive the first coordinates. If the data can not be

received after 2 3 minutes, please check the installation

position of the device, making sure it is not being shielded by

any metal.

5. If GSM can not receive the signals normally, please

check whether SIM card is installed correctly or there is no

GSM signal at the current location , such as a basement

parking, please drive to a place covered by GSM signal.

6. If the red LED does not work when power is connected,

check whether the fuse is blown. If so, please replace the fuse.

7. If the three LEDs do not turn on when power up, press

the down side key, if the three LEDs recover normally, the

device is working normally.

8. If you have enabled the web based tracking application,

and the device displays off-line on the platform, please check 3

LEDs status indicators first. You can check the status of the

SIM card when you are in an inconvenient situation. Please

refer to the following steps:

1)Call the device to check whether you can get through.

2)Check whether the SIM card supports GPRS and a local

APN.

3)Check the GSM/GPS reception area.

4)Check whether there is enough credit on the SIM card.

5)Check if the connector and terminal is loose or the fuse has

blown out.
