RAYKUBE Wifi Electronic Door Lock With Tuya APP Remotely / Biometric Fingerprint / Smart Card / Password / Key Unlock FG5 Plus

Good News!!!

From now on,

The products sent from China is support 8 language free changing-over.

Support Arabic / English / Indonesian / Portuguese / Russian / Spanish / Thai / Vinetnamese

Note: H4 is available in black and red copper for these 2 colors,if you order H4, we usually send the black color by default, or you want the red copper color, please leave a note to let us know, thank you

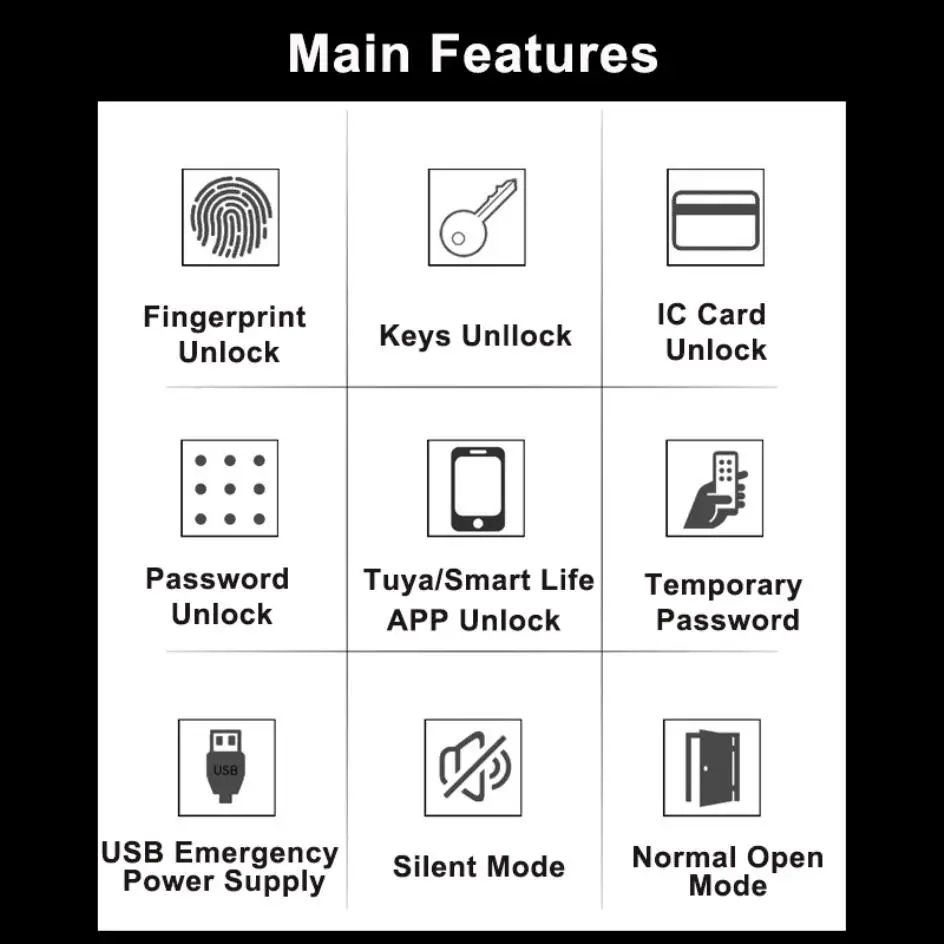

Main Features

Support 8 Language voice free changing-over

Both Support Tuya / Smartlife APP

Fingerprint / Password / Smart Card / Key Unlock

Temporary Password

Timed Password

Support Normal Open Mode (access free)

24+ Mortise Lock Size to choose

Frosted Shell

Universal Both for Right or Left Door

For 35-55mm Door Thickness

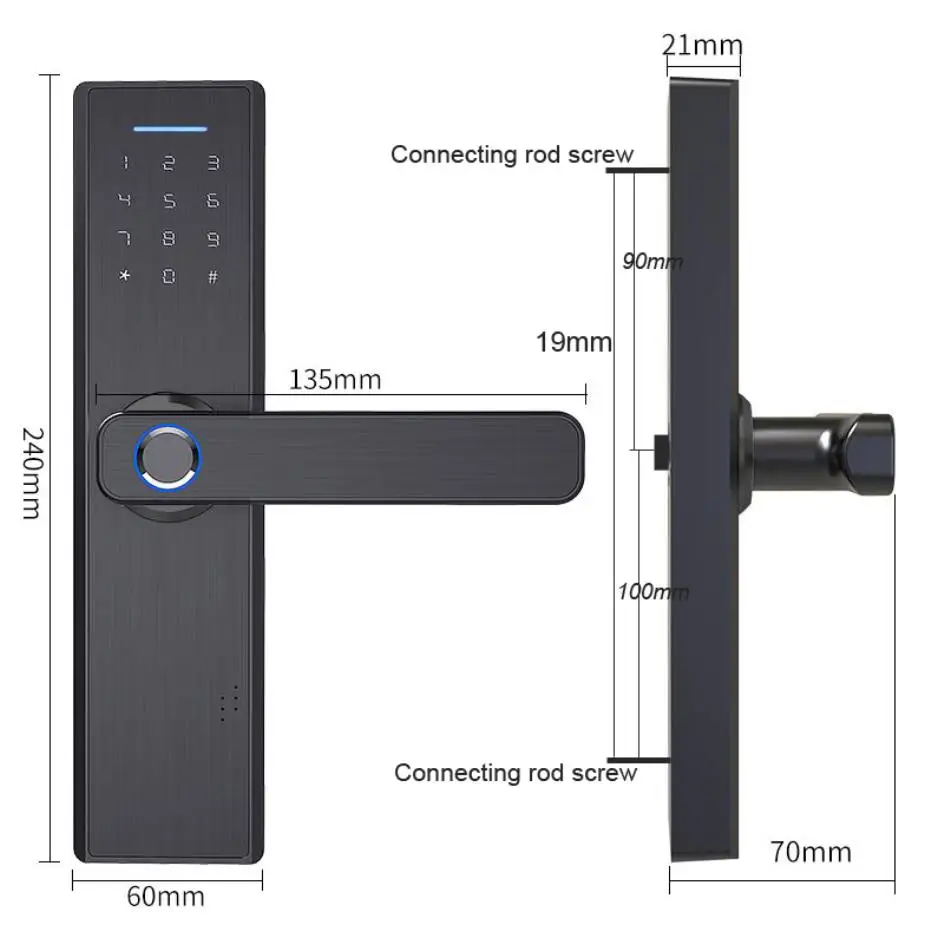

Specifications

Brand: RAYKUBE

Model: R-FG5 Plus/H4

Support Wifi connecting: Tuya Version

Material: Aluminium Alloy

Unlock mode: APP / Fingerprint / Password / Smart card / Key

Fingerprint read: FPC Sensor (Semiconductor Sensor)

Color: Gold / Black

Card User: 100

Fingerprint User: 100

Chip Type: Dual Core Driver

Read time: 0.3seconds

Touch screen: IML Material

Working power: 4 x AAA 1.5V batteries (not include)

Operating temperature: -25 to 55 Centigrade

Password function: support virtual password

Suit for the door thickness about 35 -55mm

Support 8 Language Voice free changing-over

System Voice: Arabic / English / Indonesian / Portuguese / Russian / Spanish / Thai / Vinetnamese

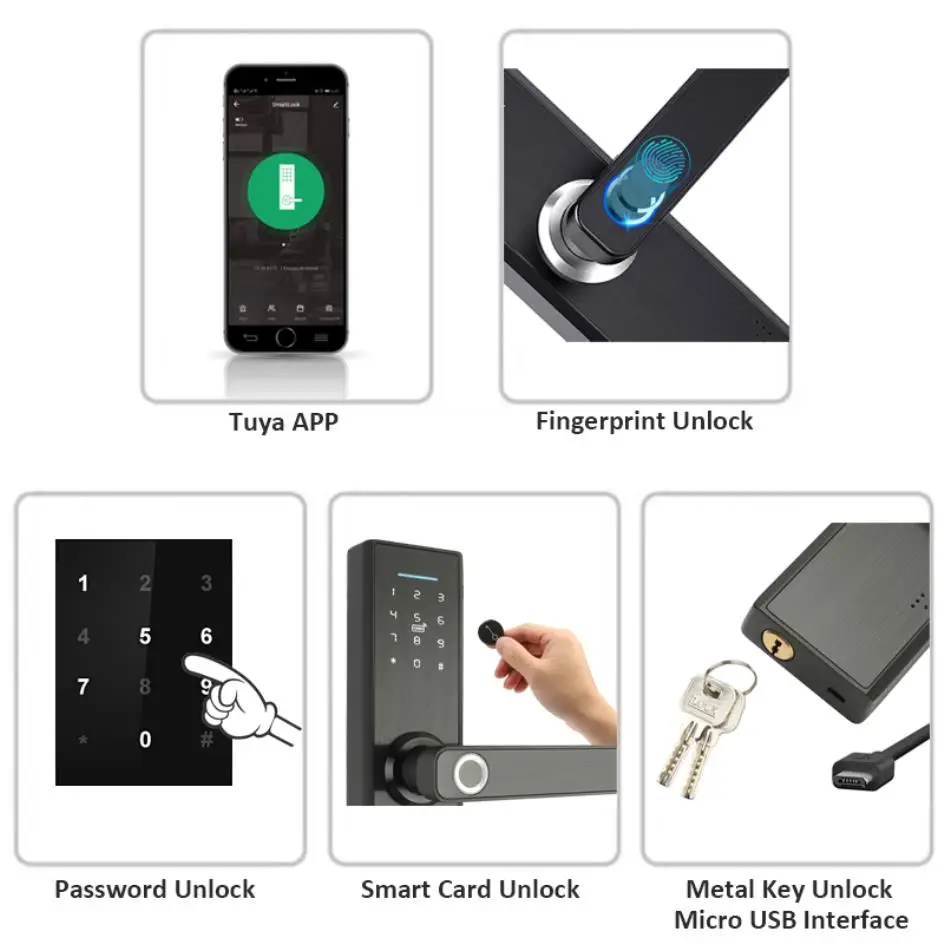

5 unlock methods

Tuya wifi/Fingerprint / Password / Smart Card / Key Unlock

Battery box in the back handle, use 4pcs AAA 1.5V battery. (battery not include)

Inside Locked Switch:

If turn on this switch, commond user can not open lock by Fingerprint / Password / Card from outside. Unless the Admind User can open lock from outside.

Tuya APP Function:

1.Connect to the wifi direct, not need any gateway;

2.Unlock remotely by phone APP;

3.Get the unlock record when someone open the lock;

4.Make the temporary password / timed password in APP

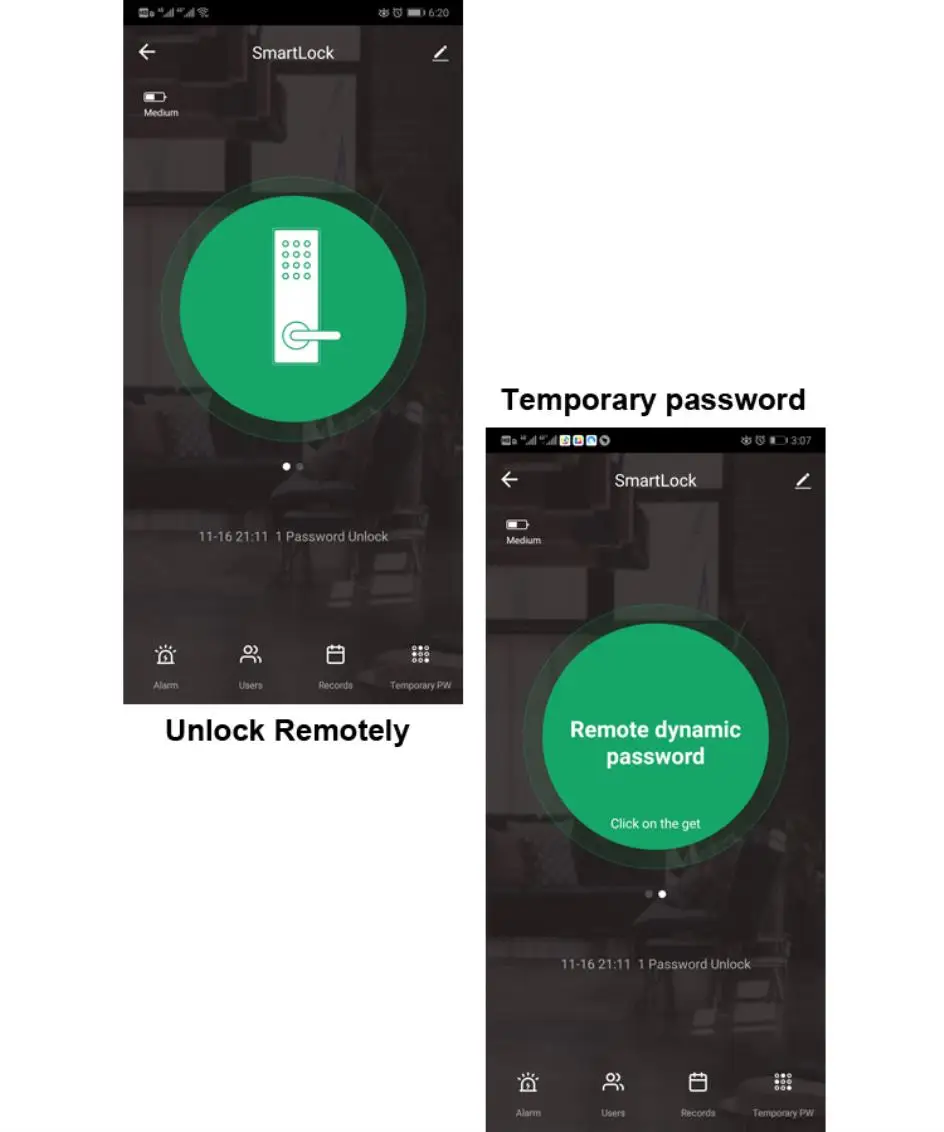

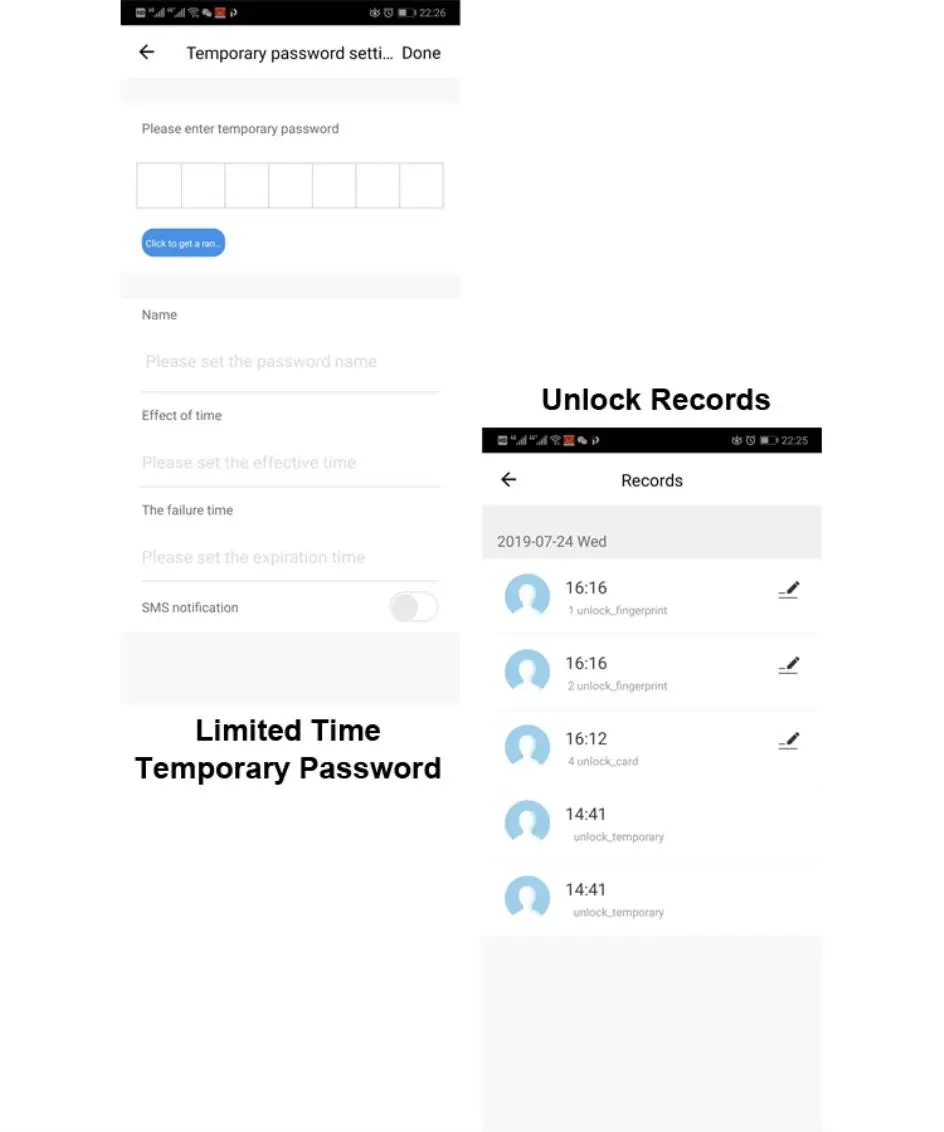

APP Screen shot details:

About Installtion:

This lock suit for the door thickness 35-100mm door thickness.

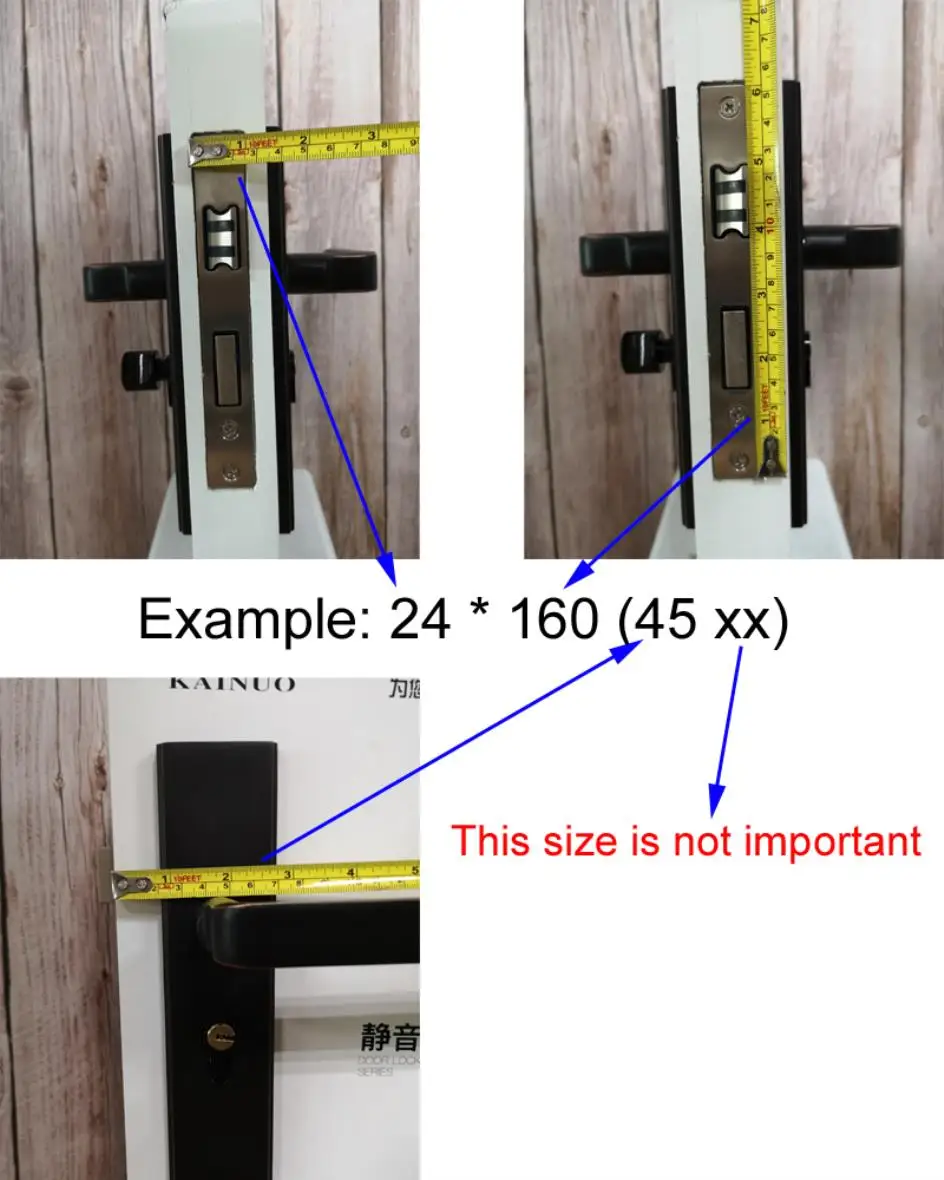

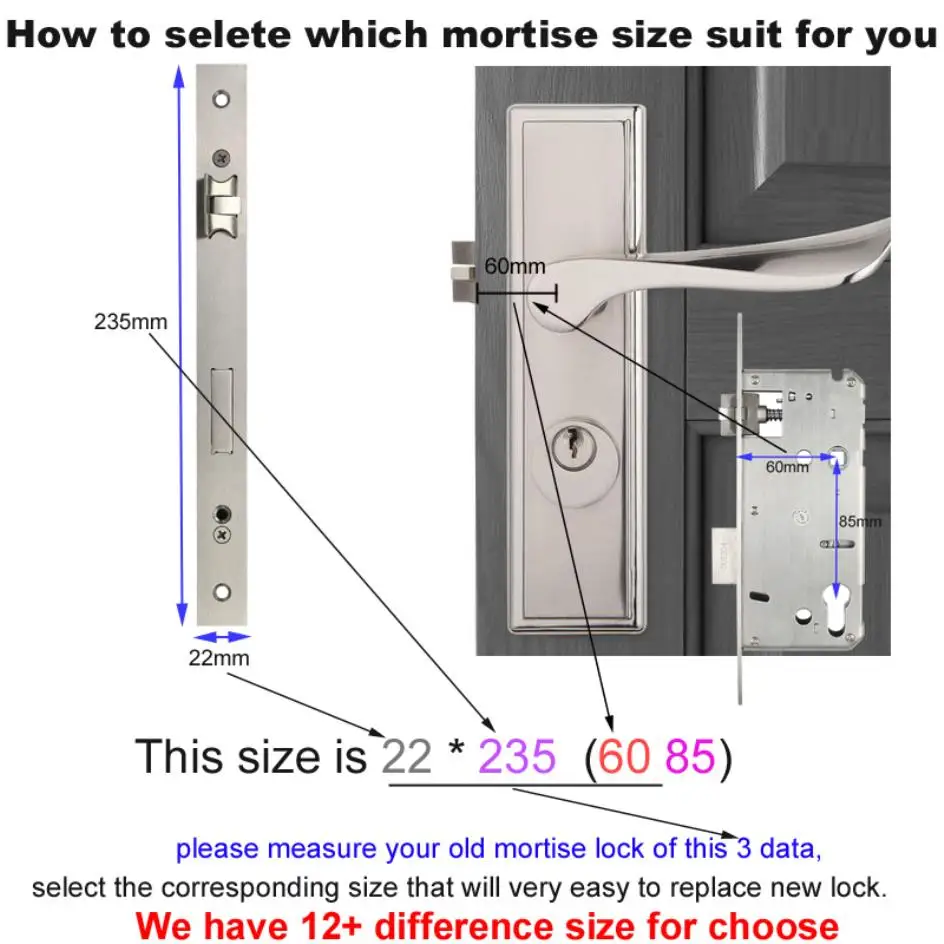

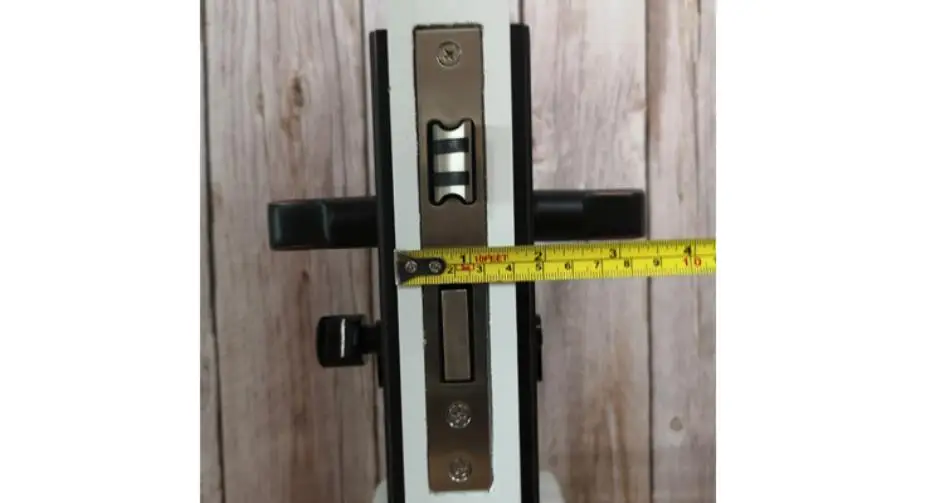

please measure your old mortise lock size, and check our all options different mortise lock size which one suit for your door. That will more easy replacement.

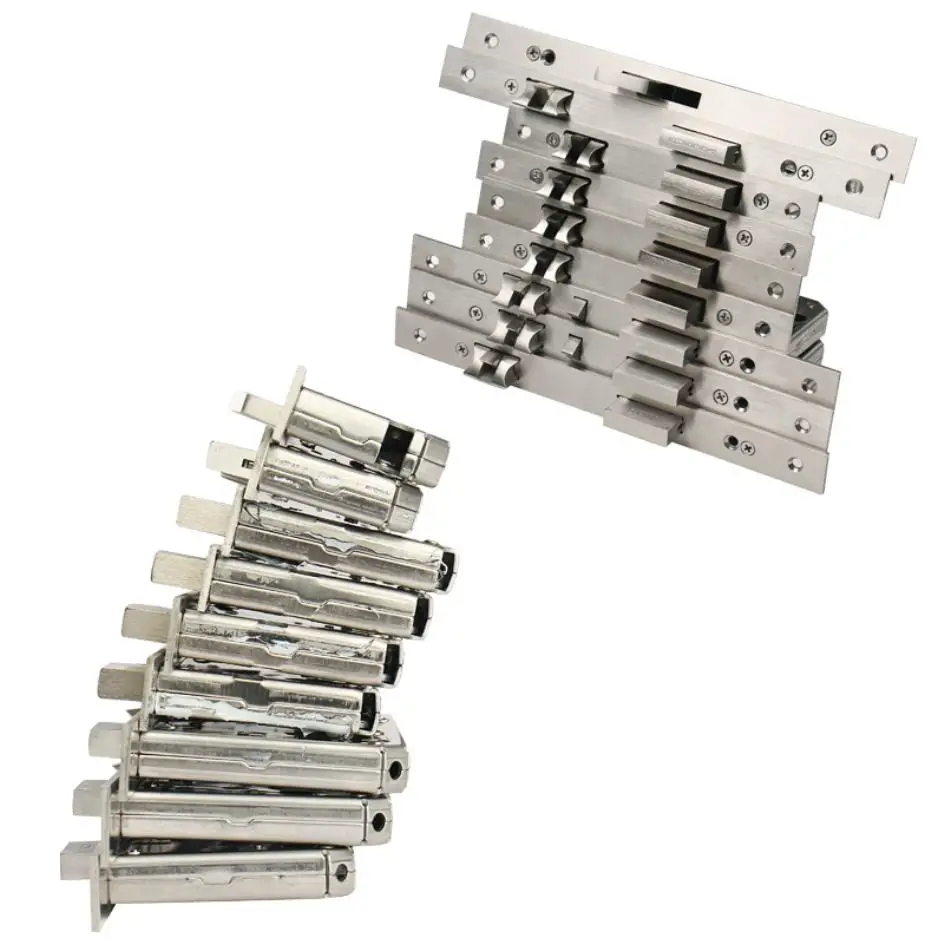

We have 24+ different size mortise lock size for choose

if you don't know how to choose the size, please contact us.

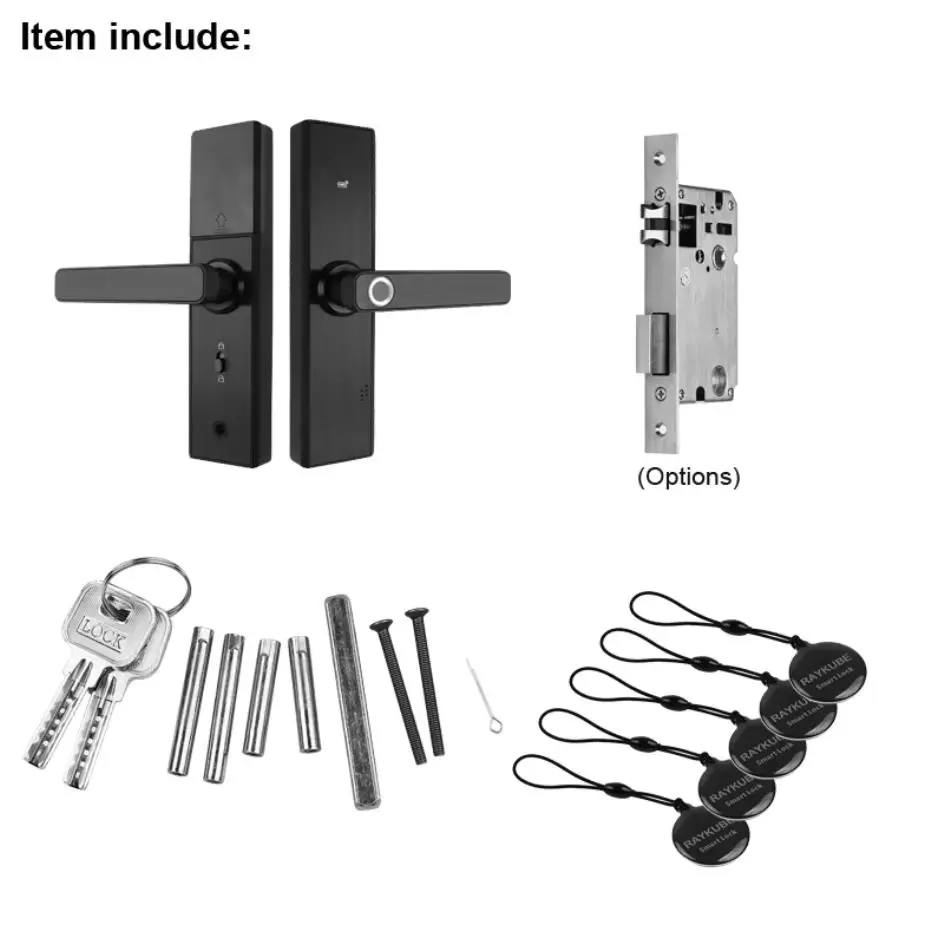

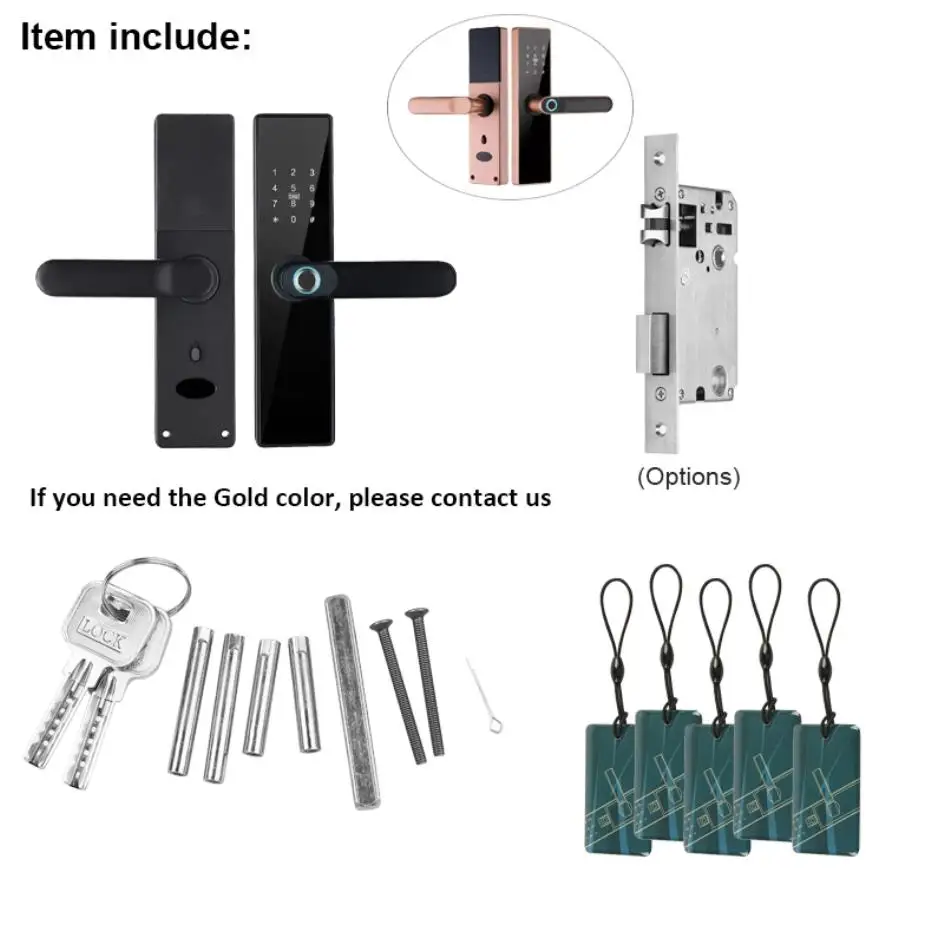

Package of FG5 Plus

Front panel x 1

Rear panel x 1

Mortise lock x 1(options)

Smart card x 5

Mechanical Key x 2

Screw Kit x 1

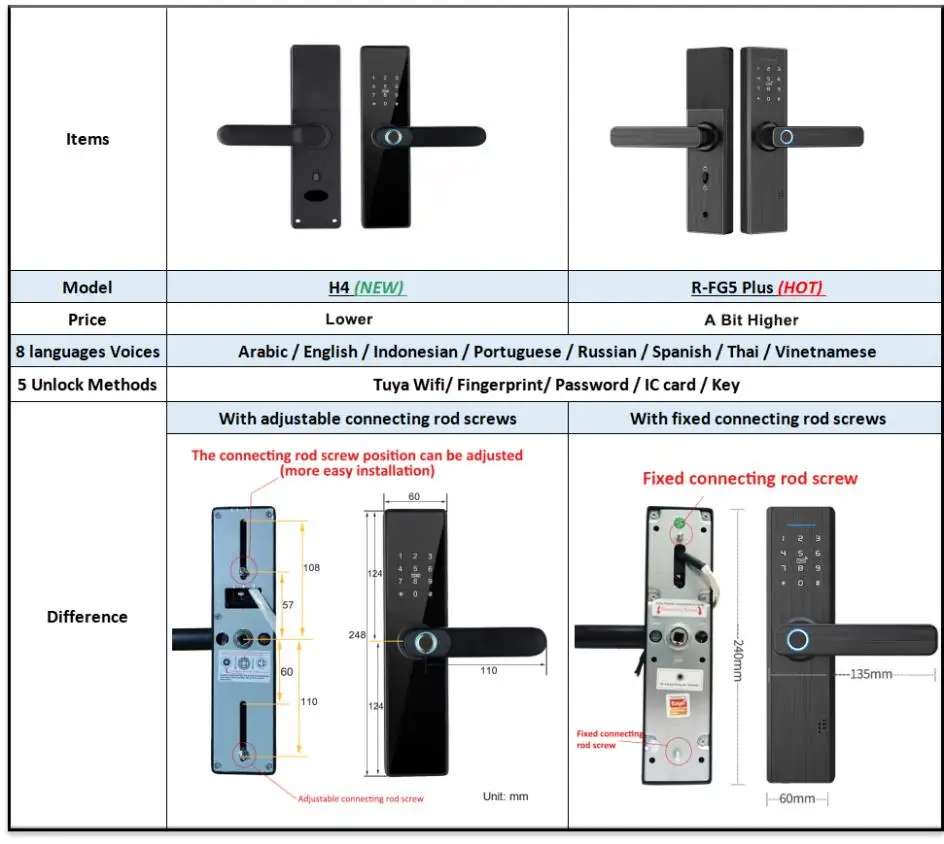

Package of H4

Front panel x 1

Rear panel x 1

Mortise lock x 1(options)

Smart card x 5

Mechanical Key x 2

Screw Kit x 1
