Notice for placing an order

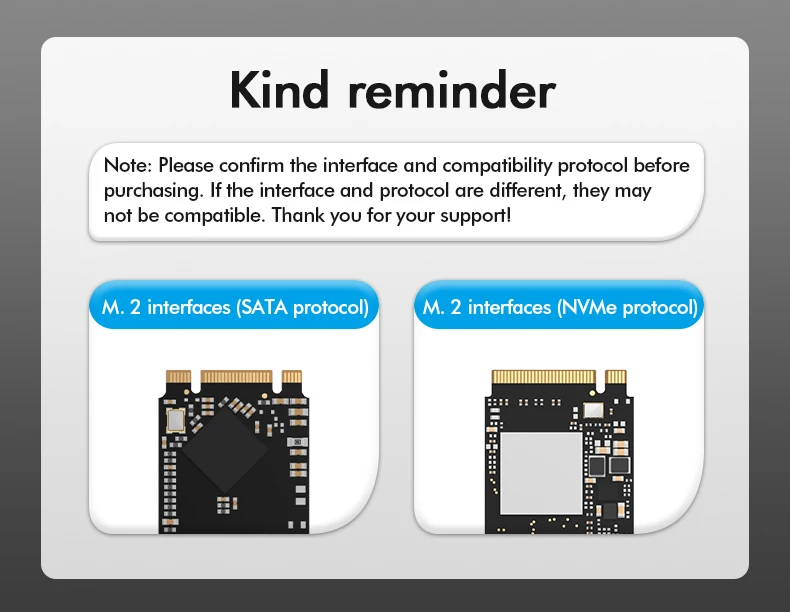

This product is based on the M.2 SATA protocol, not the NVMe protocol. Please confirm the controller before placing an order. The SSD of this product only supports the Sata protocol

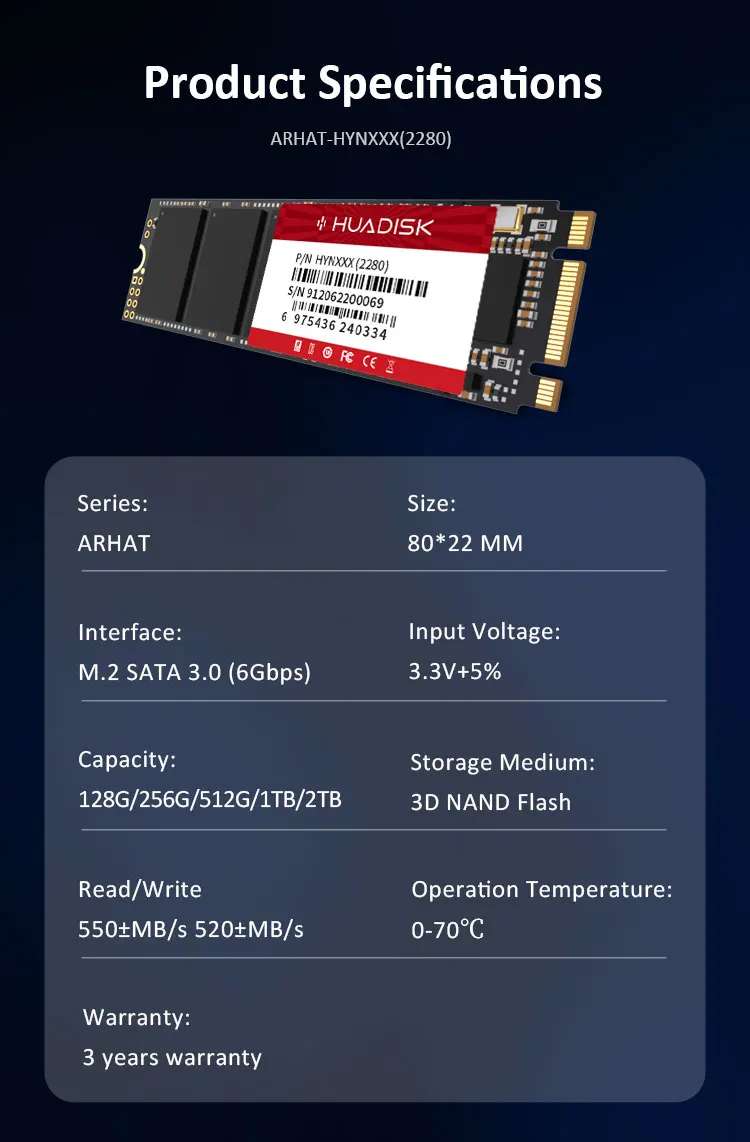

Descriptions:

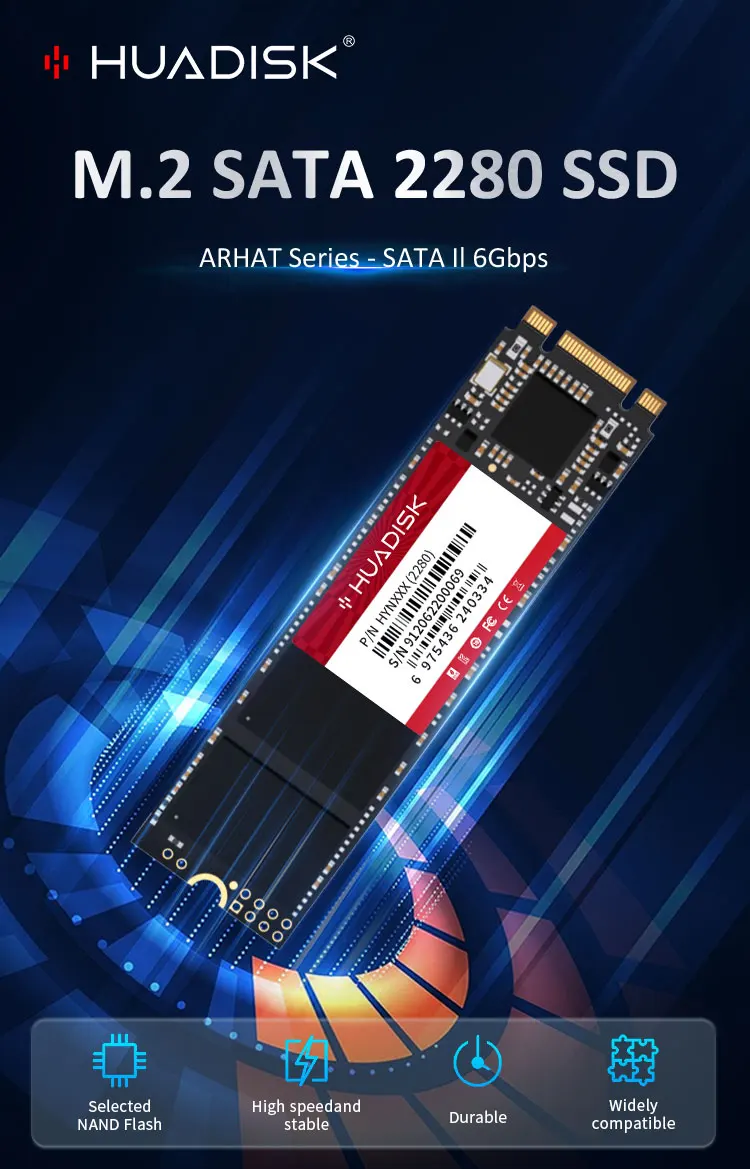

>>Product name: M.2 SATA 2280 SSD

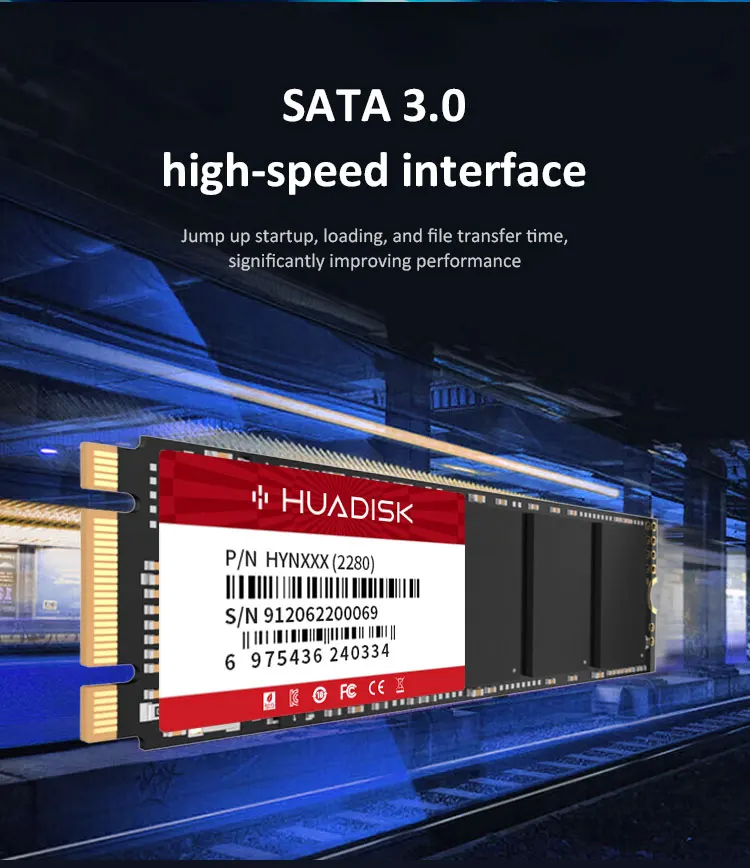

>>Interface protocol: M.2 SATA3.0 (6Gbps)

>>Interface type : B+MKey

>>Controller: SMI/YEESTOR

>>Nand Flash Type: 3D Nand Flash

>>Physical dimension: 80(L)X22(W)X3(H)mm

>>SupportCapacity:128GB 256GB 512GB 1TB 2TB

>>Max Sequential Read: 550Mbps

>>Max Sequential Write: 500Mbps

>>Input voltage: 3.3V±5%

>>Storage temperature: 0℃~70℃

>>Warranty/support: 3 years warranty with free technical support

>>TBW of Different capacity:  60TBW[128GB]  200TBW [256GB]  300TBW [512GB]   600TBW [1TB]  1200TBW [2TB]

Product features:

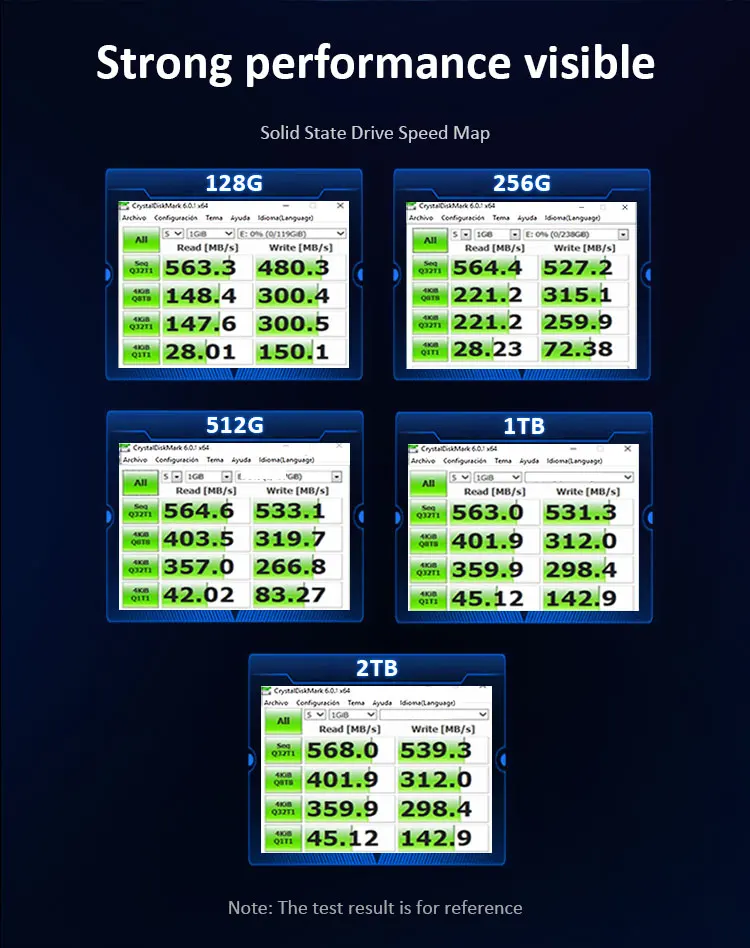

 1.High Efficiency Performance

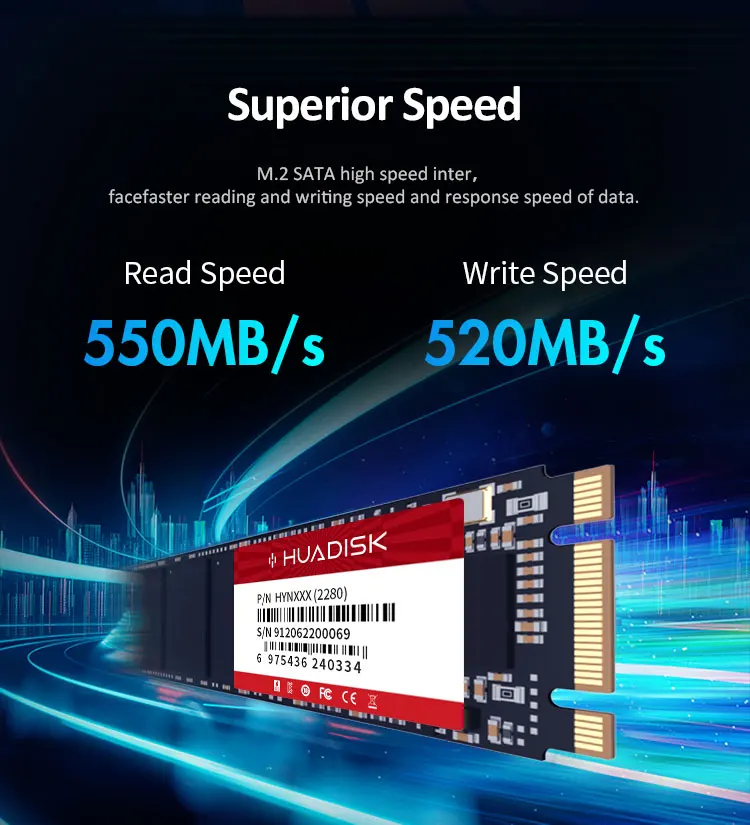

Sequential read/write speeds can reach up to 520/500MB/s. Loading time is greatly reduced, making more efficient in booting,   entering games and reading files.

2.Powered by a new SMI controller designed to harmonize the flash memory components and the interface for superior speed –     with a M.2 SATA3.0 (6Gbps) interface that's 5x faster than mechanical hard disks.

3.The Huadisk SSD is equipped with the original master control and original flash menory particles. It can be used with various   loads, whether its daily work or playing large-scales games, and can easily handle it.

4. M.2 SATA 2280 SSD series offers a variety of capacities for you to choose (128GB, 256GB, 512GB,1TB, 2TB), which to meet   your needs for different scenarios.

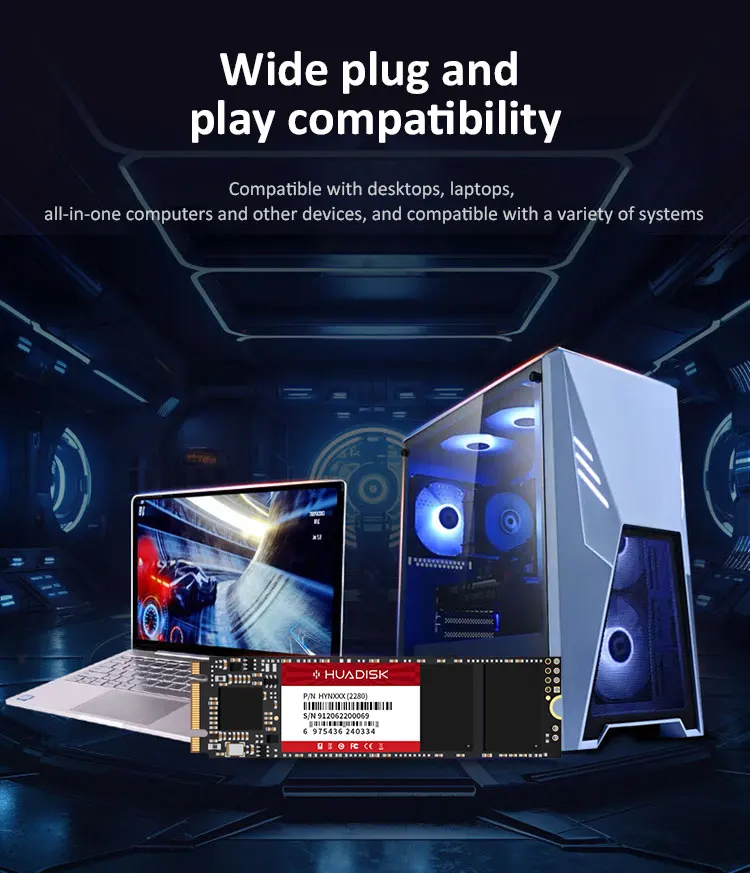

5. M.2 SATA 2280 SSD compatible with all SATAIII interface devices, such as desktop, laptop, All-in-one PC, notebook and mining   machines. Designed for storage upgrade, compatible with Windows, Mac OS, Linux operating systems.

Package include:

>>1 X M.2 SATA 2280 SSD

>>1 X Package box

Special note:available capacity ≠ identification capacity

The factory capacity of storage products is usually calculated according to 1MB=1000KB, 1GB=1000MB, and computer operating systems use binary algorithms, that is, 1MB=1024KB, 1GB=1024MB, so the usable capacity of storage products is about 90% of the identified capacity,normal phenomenon

(8G≈7.3G, 16G≈14.5G, 32G≈28.6G, 64≈58G, 128G≈118G, 256G≈230.4G, 512G≈476G, 1TB≈930G, 2TB≈1870G)

Before you use:

For new SSD, please finish disk initialization according to the following steps.

1. Open Start. Search for "Create and format hard disk partitions" and click the top result to open the Disk Management console.

2. Right click "Computer" - "Manage" - "Disk Management".

Find your unallocated disk, right click "Unallocated", and choose "New Simple Volume Wizard". So then your SSD can be detected.
